X300L
Under-rack liftingPallet handling and production-line material transfer
X300 Series ?300 kg
The flexible workhorse for mixed material flow.
A general-purpose 300 kg AMR for line feeding, process transfer and multi-format material movement in small and midsize factories.
Why X300 Series
Built around your material flow.
The flexible workhorse for mixed warehouse and factory workflows.
- Balanced 300 kg payload for common intralogistics tasks
- Four forms for flat-top, lifting, under-rack and multi-tier workflows
- Open interfaces for factory systems, equipment and peripheral devices
X300 configuration matrix
Four forms. One 300 kg platform.
Select the load interface first, then connect the robot to the required stations, equipment and factory systems.
X300B
Flat-topTotes, cartons, non-standard carriers, station feeding and process transfer
X300B-L
Flat-top lifting60 mm lift for standard carriers, warehouse and line-side workflows
X300T
Multi-tierSeparated tote delivery and multi-station supply for precision production
Modular architecture
Change the function the entire robot.
Navigation domain
Dual LiDAR and visual SLAM modules support field-replaceable navigation hardware.
Functional domain
Flat-top, lifting, under-rack and multi-tier modules adapt the platform to different carriers.
Interaction domain
Industrial interaction hardware supports operation in dusty and oily production environments.
Expansion domain
Standard APIs, hardware communication and power interfaces support peripherals and secondary development.
Documented deployment example
Eight X300 robots connected a garment factory workflow.
The supplied X300 presentation describes a Zhejiang garment factory moving from manual transport to an integrated workshop deployment.
8
X300 robots deployed
200 ?500
reported daily moves
23%
reported production efficiency increase
3.5 months
reported payback period
Case results are reported in the supplied presentation and are specific to that facility, workflow and deployment. They are not a performance guarantee.
X300 in real operations
Five ways X300 adapts to your material flow.

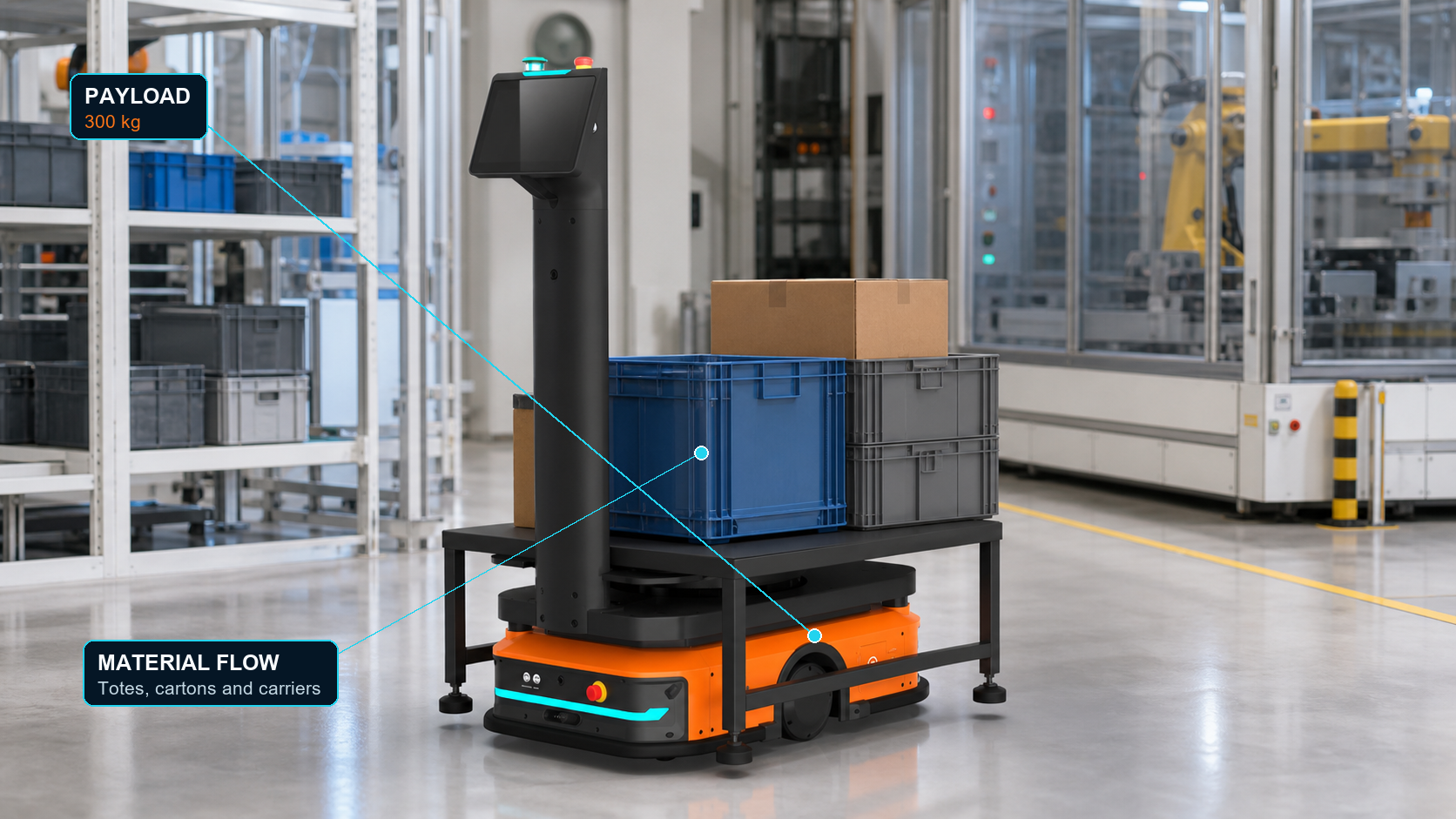

01 ?Medium-load material flow
Carry more through the everyday factory route.
X300 moves totes, cartons and common carriers up to 300 kg for line feeding, process transfer and finished-goods movement.
- 300 kg payload
- 1.5 m/s unloaded
- 1.2 m/s loaded

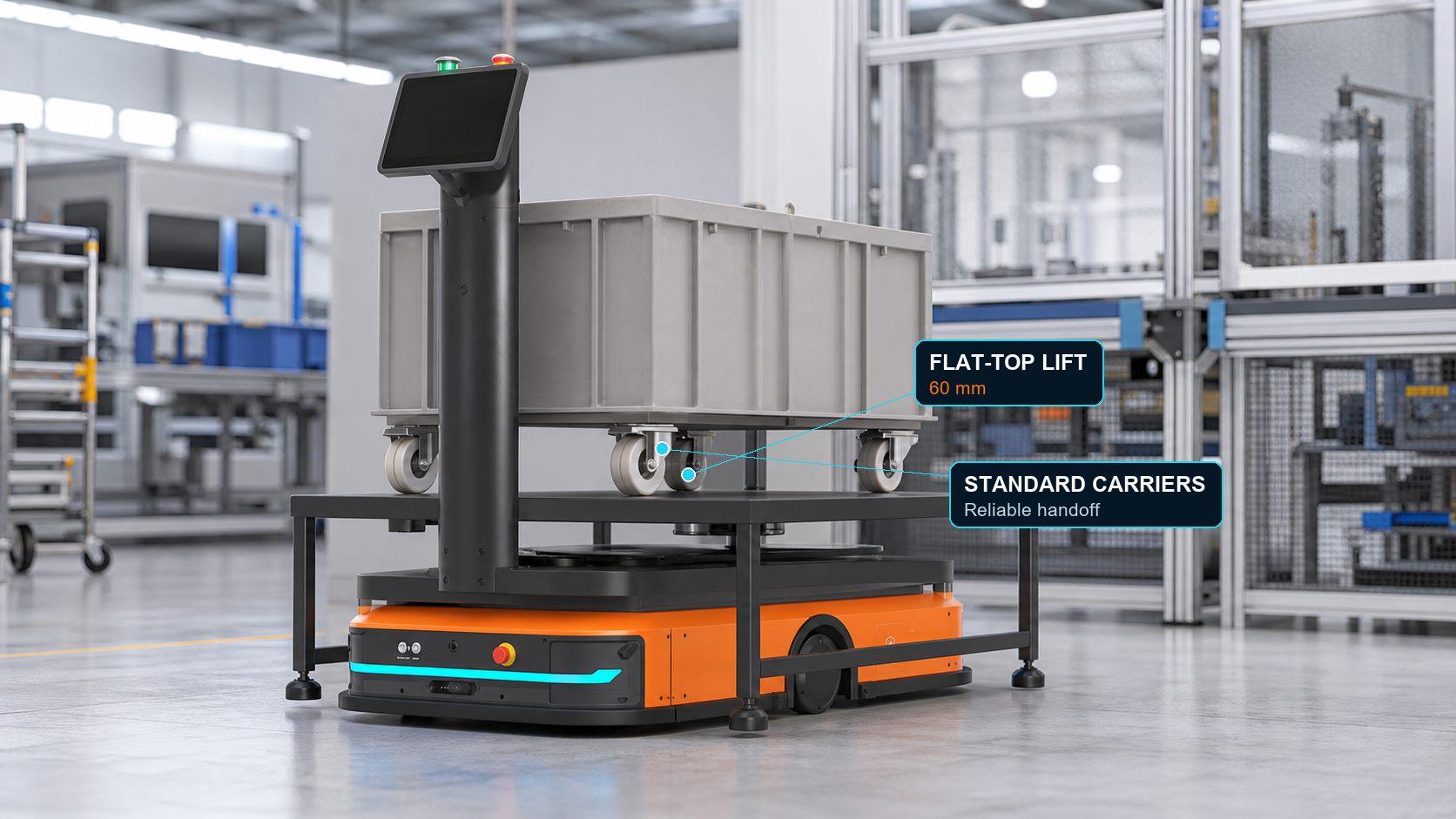

02 ?Flat-top lifting
Lift standard carriers by 60 mm.
The X300B-L flat-top lifting form raises standard carriers for reliable handoff in warehouse and line-side workflows.
- 60 mm lift
- Standard carriers
- Line-side transfer

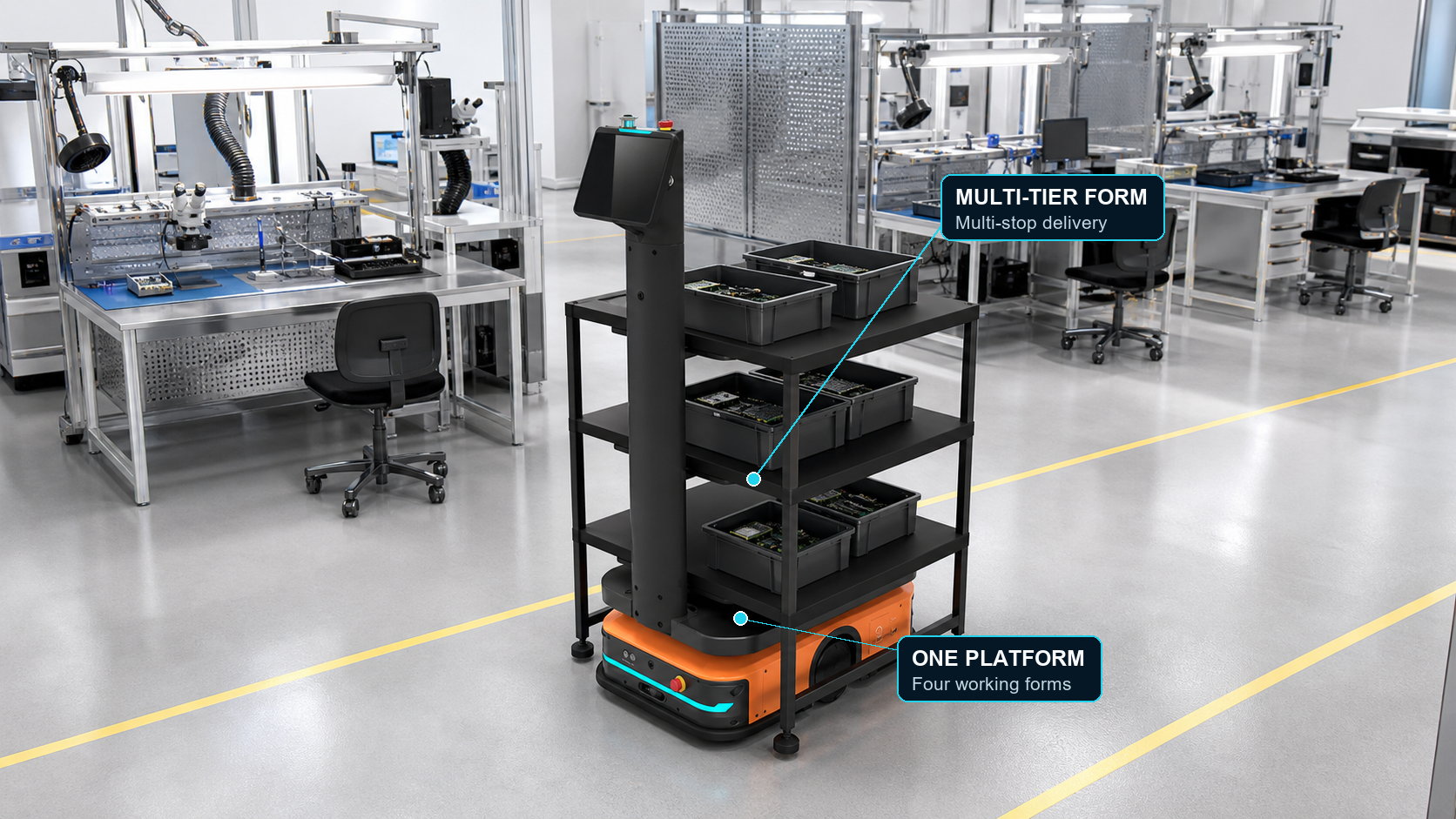

03 ?Four working forms
One platform. The right carrier for each task.
Choose flat-top, lifting, under-rack or multi-tier form to match cartons, pallets, workstations and multi-stop delivery.
- Flat-top
- Lifting
- Under-rack
- Multi-tier

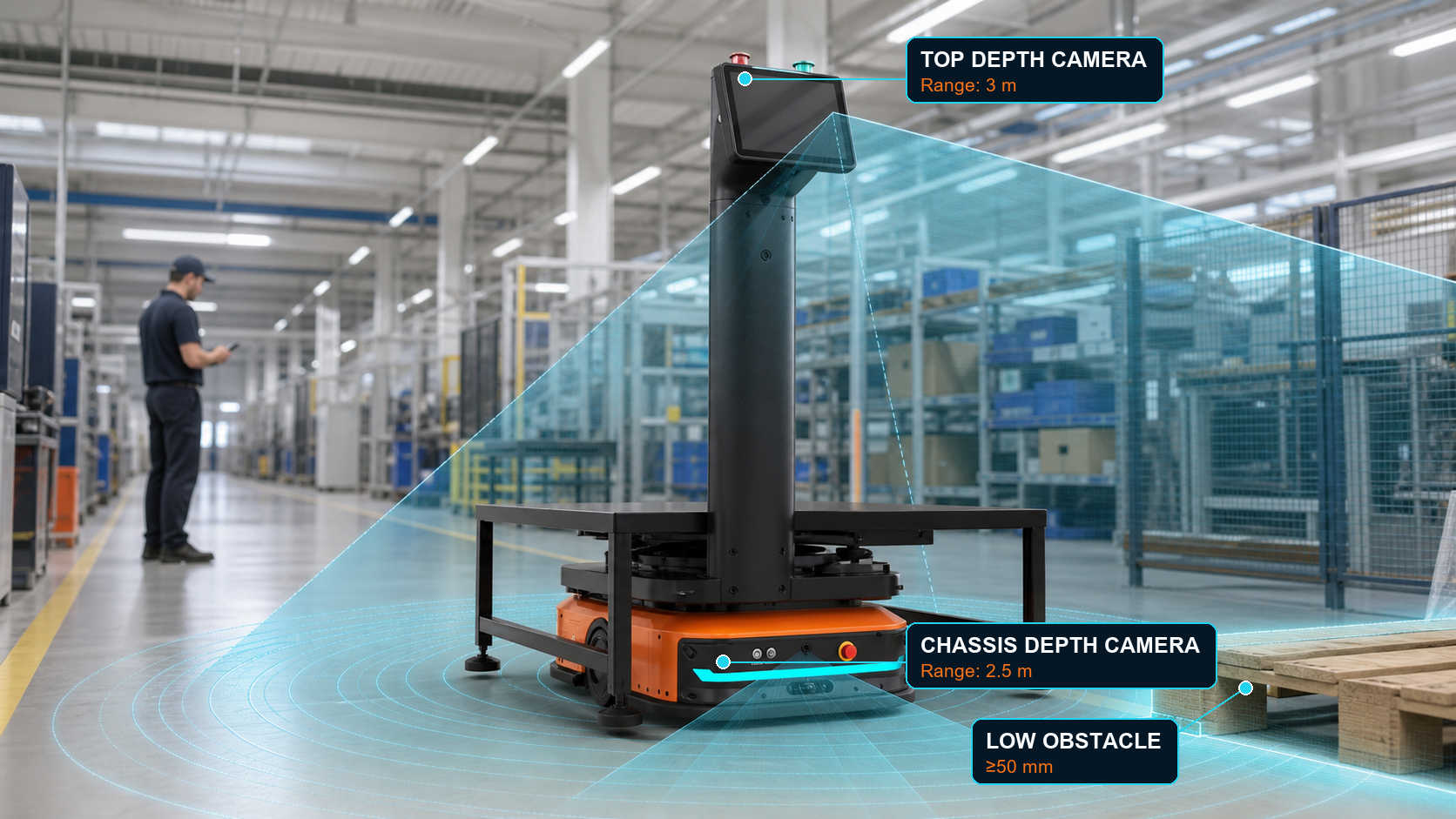

04 ?Multi-layer sensing
See people and low objects around the route.
Top and chassis depth cameras work with LiDAR to sense people, pallets and low obstacles in a shared factory aisle.
- Top depth range: 3 m
- Chassis depth range: 2.5 m
- Low obstacles: ?0 mm

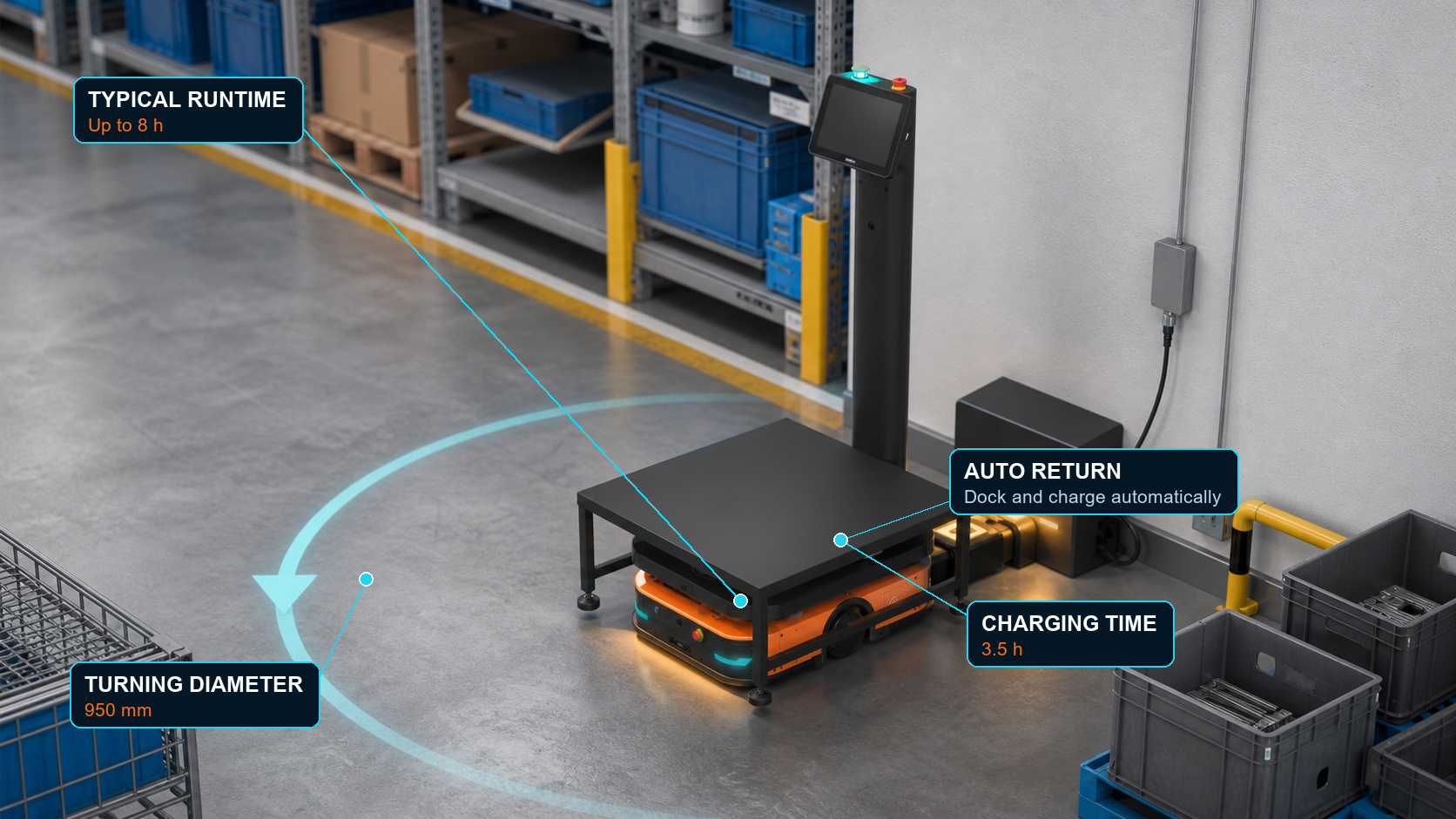

05 ?Shift-ready operation
Work the shift. Return to charge.
X300 runs up to 8 hours in typical conditions, then returns to charge automatically in 3.5 hours.
- Up to 8 h typical
- Auto return to charge
- 3.5 h charge
- 950 mm turning
Product Specification
X300 Series technical specifications.
- Reference model
- X300B-L flat-top lift
- Dimensions
- 852 × 506 × 1,270 mm
- Robot weight
- 120 kg
- Maximum payload
- 300 kg
- Turning diameter
- 950 mm
- Ground clearance
- 25 mm
- Maximum speed
- 1.5 m/s unloaded · 1.2 m/s loaded
- Runtime
- 12 h unloaded · 8 h typical
- Charging time
- 3.5 h
- Navigation
- Laser SLAM + VSLAM + visual assist
- LiDAR range
- 30 m
- Navigation accuracy
- < ±20 mm · 2°
- Final positioning
- < ±10 mm · 1°
- Map resolution
- 5 cm default · 2 cm high precision
- Slope / step / gap
- 5° / 20 mm / 35 mm
- Battery life
- 2,000 cycles · DOD ≥ 80%
- Communication
- 4G · Wi-Fi · LoRa · ESP32
- Depth camera
- Top: H 91° · V 62° · range 3 m; chassis: H 116.9° · V 91.1° · D 125° · range 2.5 m (±3°)
- Remote control
- Optional
- Obstacle detection
- High and low obstacle detection
- Obstacle detection height
- Main LiDAR ≈ 200 mm · low obstacle ≥ 50 mm
- Operating environment
- 0–45°C · 10–95% RH, non-condensing
- Maximum map area
- 20,000 m²
- Operating altitude
- Below 2,000 m
Product comparison
Compare the three primary X Series robots.
Choose by payload, material type and workflow. Final configuration is confirmed after a route and throughput review.
| Specification | X100 Series View product | X300 SeriesCurrent View product | X600 Series View product |
|---|---|---|---|
| Best fit | Totes, small parts and line-side delivery | Production supply and process transfer | Large components and heavy materials |
| Configurations | X100B · X100T · X100L | X300B · X300B-L · X300T · X300L | X600B · X600B-L |
| Reference model | X100T multi-tier | X300B-L flat-top lift | X600B |
| Dimensions | 570 × 470 × 1,270 mm | 852 × 506 × 1,270 mm | 980 × 680 × 1,420 mm |
| Robot weight | 45 kg | 120 kg | 180 kg |
| Maximum payload | 100 kg | 300 kg | 600 kg |
| Turning diameter | 650 mm | 950 mm | 1,200 mm |
| Ground clearance | 25 mm | 25 mm | 25 mm |
| Maximum speed | 1.5 m/s unloaded · 1.2 m/s loaded | 1.5 m/s unloaded · 1.2 m/s loaded | 1.2 m/s unloaded · 1.0 m/s loaded |
| Runtime | 12 h unloaded · 8 h typical | 12 h unloaded · 8 h typical | 12 h unloaded · 8 h typical |
| Charging time | 3.5 h | 3.5 h | 1.5 h |
| Navigation | Laser SLAM · top VSLAM · line · reflector | Laser SLAM + VSLAM + visual assist | Laser SLAM · top VSLAM · line · reflector |
| LiDAR range | 30 m | 30 m | 30 m |
| Navigation accuracy | < ±20 mm · 2° | < ±20 mm · 2° | < ±30 mm · 2° |
| Final positioning | < ±10 mm · 1° | < ±10 mm · 1° | < ±10 mm · 1° |
| Map resolution | 5 cm default · 2 cm high precision | 5 cm default · 2 cm high precision | 5 cm default · 2 cm high precision |
| Slope / step / gap | 5° / 20 mm / 35 mm | 5° / 20 mm / 35 mm | 3° / 10 mm / 30 mm |
| Battery life | 2,000 cycles · DOD ≥ 80% | 2,000 cycles · DOD ≥ 80% | 2,000 cycles · DOD ≥ 80% |
| Communication | 4G · Wi-Fi · LoRa · ESP32 | 4G · Wi-Fi · LoRa · ESP32 | 4G · Wi-Fi · LoRa · ESP32 |
| Depth camera | FOV H 75±3° · V 51±3° · range 0.3–3.5 m | Top: H 91° · V 62° · range 3 m; chassis: H 116.9° · V 91.1° · D 125° · range 2.5 m (±3°) | FOV H 75±3° · V 51±3° · range 0.3–3.5 m |
| Remote control | Wireless controller | Optional | Wireless controller |
| Obstacle detection | High and low obstacle detection | High and low obstacle detection | High and low obstacle detection |
| Obstacle detection height | Main LiDAR ≈ 200 mm · low obstacle ≥ 50 mm | Main LiDAR ≈ 200 mm · low obstacle ≥ 50 mm | Main LiDAR ≈ 200 mm · low obstacle ≥ 50 mm |
| Operating environment | 0–45°C · 10–95% RH, non-condensing | 0–45°C · 10–95% RH, non-condensing | 0–45°C · 10–95% RH, non-condensing |
| Maximum map area | 20,000 m² | 20,000 m² | 20,000 m² |
| Operating altitude | Below 2,000 m | Below 2,000 m | Below 2,000 m |
